Description

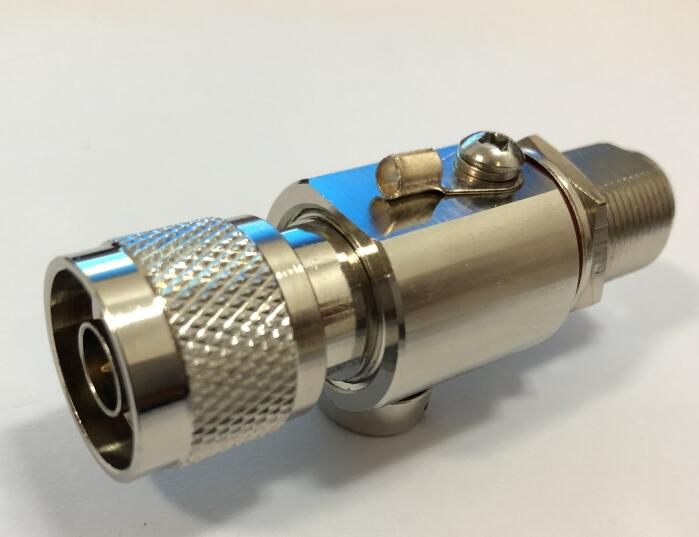

N-type female (socket) to N-type male (plug) High Voltage arrester with 250V fuse element.
High quality item!
DC voltage(V) 250V - It ships with the fuse elements inside
Insulation Resistance(MΩ): ≥5000
Contact resistance(MΩ):
Inner conductor ≤3
Outer conductor ≤2
Impedance(Ω) 50
Frequency Range (G) 0-3G
Insertion Loss(dB) ≤0.16dB @ 3 GHZ
V.S.W.R. ≤1.25 @ 3GHZ
