Description

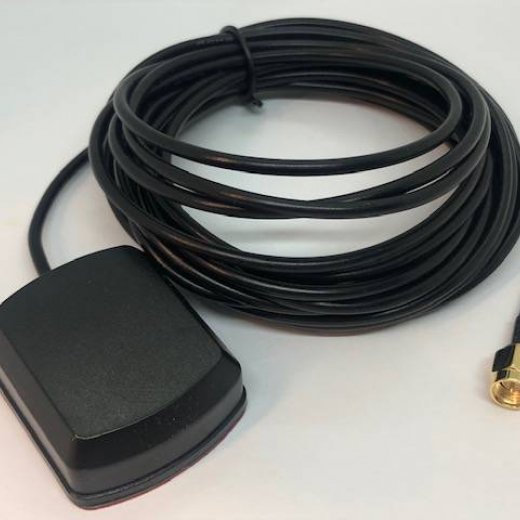

GPS/GLONASS Active Antenna with 5 meters coaxial cable.
SMA male at the cable end.
Specifications:
Dielectric Antenna
Frequency 1575.42MHz±5 MHz
1610MHZ±8MHZ
V.S.W.R 1.5:1
Band Width 10 MHz for GPS
20MHZ for GLONASS
Impedance 50 ohm
Polarization R.H.C.P
LNA Gain(w/o cable) 4.5dBic Based on 7×7cm ground plane
LNA Frequency Range 1595MHz±25 MHz
DC Voltage 3-5V
Gain(Typical) 29dB (Without cable +25℃±10℃)
Output VSWR(Typical) 2
Noise Figure(Typical) 1.6(+25℃±10℃)
DC current(Typical) 12mA(At3.0V)
Mechanical
Size 43*35*14mm

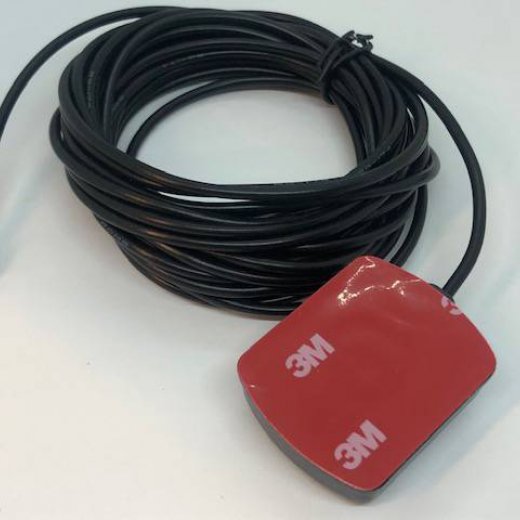

Mounting Magnetic/adhesive
Housing Black
Cable RG174, 3m or others
Connector SMA/MCX/Fakra or others
Environmental
Working Temp -40℃~+85℃
Storage Temp -45℃~+100℃
Vibration Sine sweep 1g(0-p)10~50~10Hz
each axis
Humidity Humidity95%~100%RH
Weatherproof IP67~IP68
