Description
Minimum Loss design, handles 200 W on TX

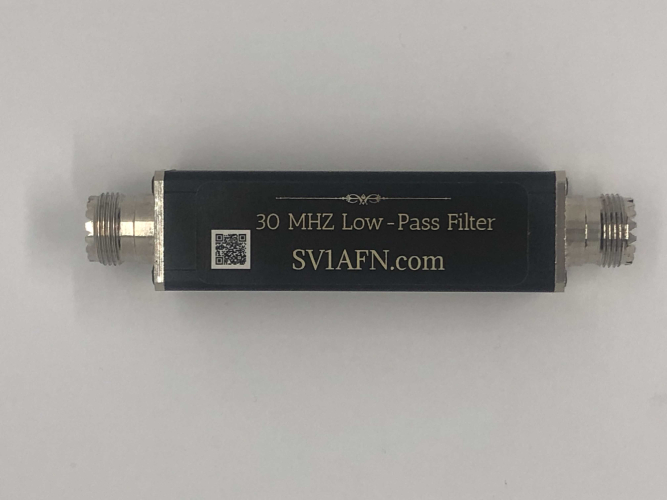

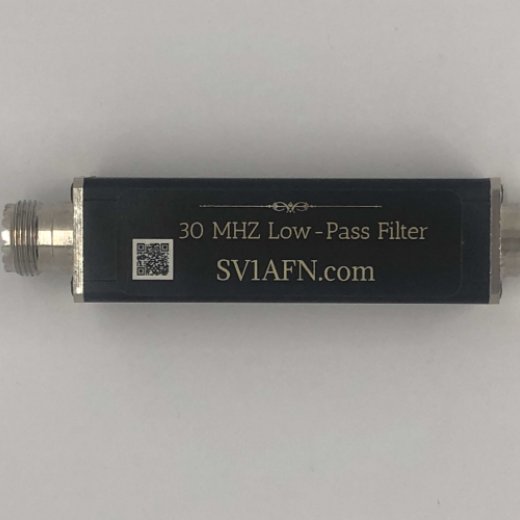

It comes with its own enclosure with SO-239 connectors
Eliminate FM broadcasters, VHF/UHF transmissions and cell-phone/tower interference from HF

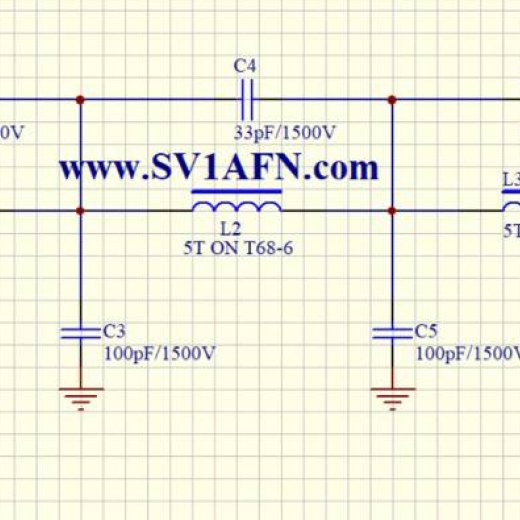

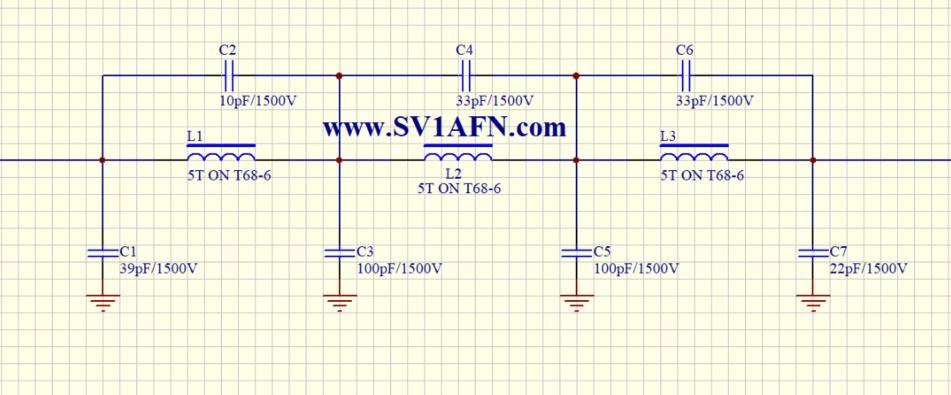

The toroids are of -6 material which gives lower loss than the -2 material and T68-6 types are used in this design
All capacitors are high voltage (630 and 1500V) and high temperature (125C) rated
The PCB dimensions are 70 x 20.8 mm and all capacitors are mounted on the bottom side
Built & Tested Module
