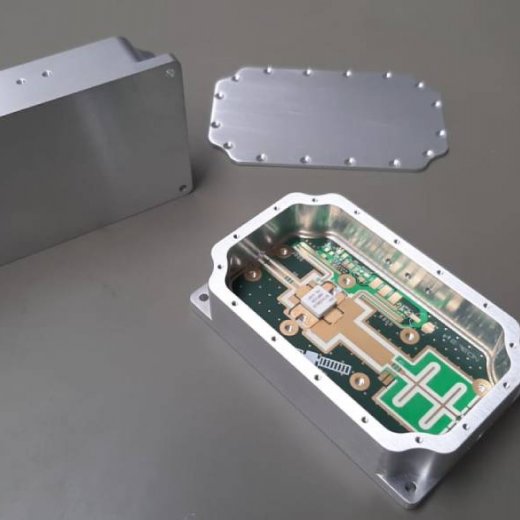

Ultra - Linear (Class AB) RF Power Amplifier Module built & tested, with Harmonic rejection filter - comes with its own machined clear Alodined (passivated) enclosure
small size 105 x 65 mm
It needs a small heatsink under the enclosure for continuous operation, or a chassis panel. No need for large heatsinks!
Overtemp protection in the bias circuit shuts down the amp when hot >50 C
Enable input: 0V for Disable, 1V....Vdd for Enable
Frequency Range: 2400 - 2500 MHZ
RF input: 26...27 dBm
RF Gain: 18 dB
RF output: 44.77 dBm (30 W) - P1dB
DC Power: +28 V DC (1.38A) ... +32VDC (1.46A)

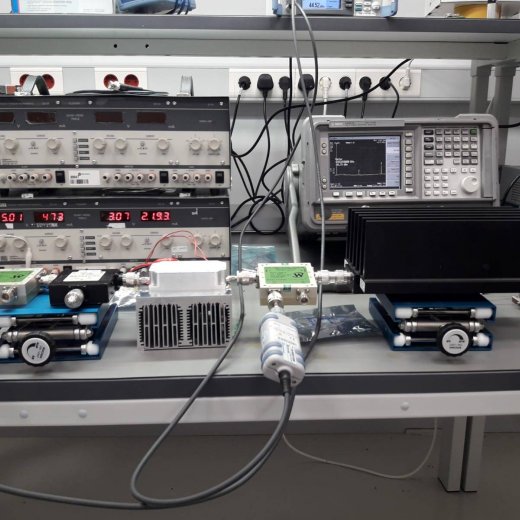

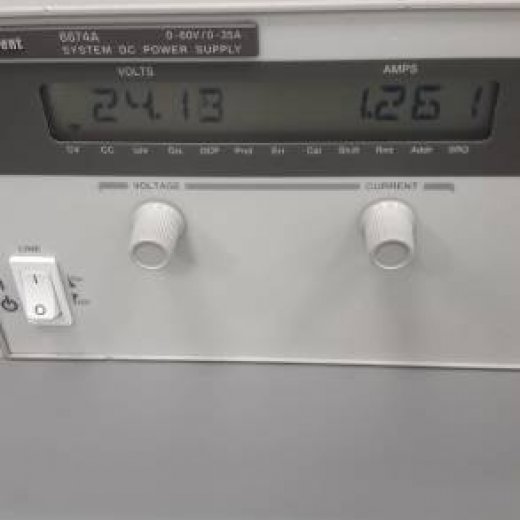

- Works with lower gain from +24VDC (1.26A)
MIL-SPEC Version is also available, please contact us for details.
Check all other power amplifier models: 1 W, 5W, 12 W, 100 W and 300 W
