Fair Rite

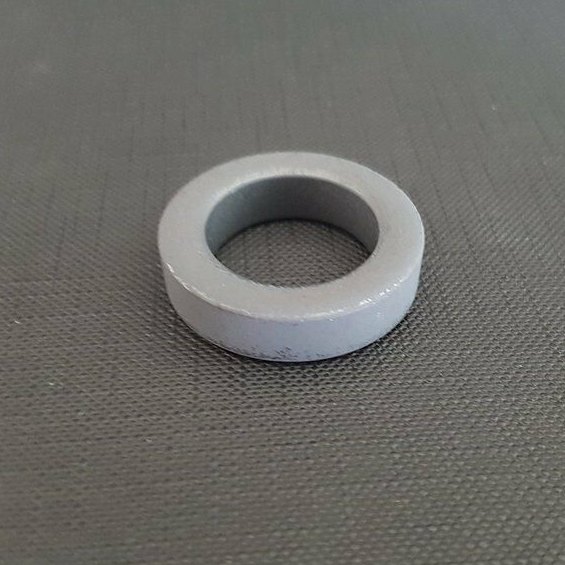

Fair-Rite Amidon Ferrite Toroid FT114-61

Quantity
(up to)
Price per piece
(VAT excluded)
Price per piece
(VAT included)
1
2,22€
2,75€
5
2,02€
2,50€
Quantity:
Total price:(VAT excluded)
2,22
Total price:(VAT included)
2,75
Share it:
Secure payments by:
Description
Outter Diameter = 1.140 in / 29.0 mm +/- 0.65 mm
Inner Diameter = 0.748 in / 19.0 mm +/- 0.50 mm
Height = 0.295 in / 7.5 mm +/- 0.25 mm
 AL=75 +/- 20 %      uH=(AL*Turns2)/1000
Actual measured AL using 10 turns #28 wire
Temperature Stability (ppm /°C) = 1000
Color Code = dull black
Application Freq Range
Wideband Transformers 20 - 500 MHz
High-Q Inductor 0.2 - 10 MHz
RFI Suppression - above 20 MHz
