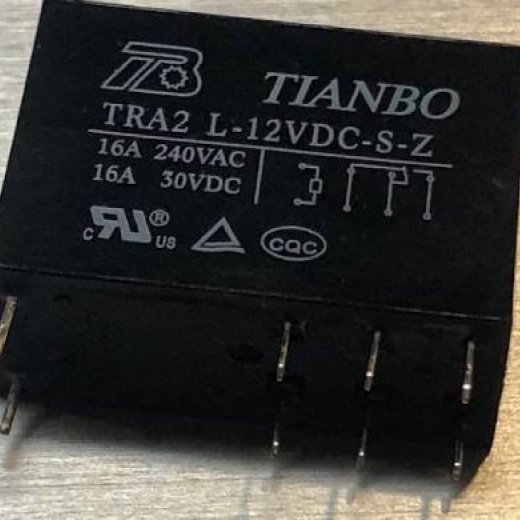

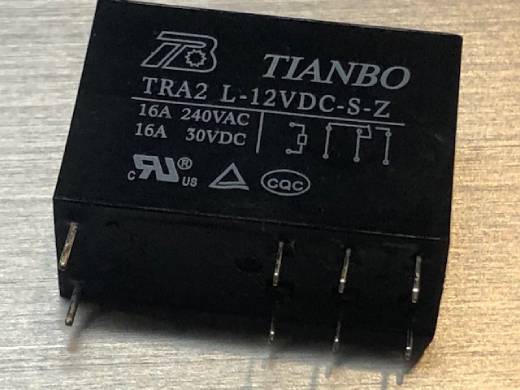

RF RELAY 0.2 dB contact @ 54 MHZ TIANBO TRA2 L-12VDC-S-Z 12V COIL

Low-cost Relay but good for filter switching, antenna selection etc. at high power levels (300-600 W and maybe more).

Good up to 150 MHZ.

Measured Attenuation:

30 MHZ:  0.01 dB contact loss, 23.9 dB isolation

54 MHZ: 0.06 dB loss, 23.4 dB isolation

70 MHZ: 0.1 dB loss, 17 dB isolation

150 MHZ: 0.12 dB loss, 16.9 dB isolation
