Experimental Set of 8 pcbs with 50 Ohm CPW not soldered SMA connectors VNA teach(DIY KIT)

Price:
29,90 (VAT excluded)
37,07
Quantity:
Share it:
Secure payments by:
Description

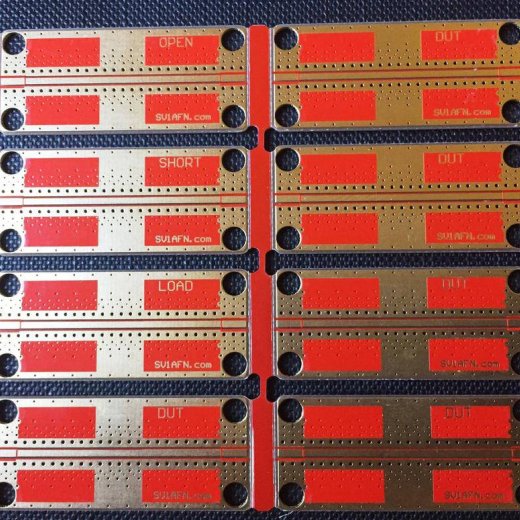

RF Experimenter's VNA-test PCB Panel of 8 pcs (DIY KIT)

With a 50 Ohm CPW over Ground Transmission Line and space for Short/Open/Load and DUT

Here is a complete KIT of 8 PCBs in a panel (hand breakable for separating them) with a 50 Ohms Co-Planar Wave-Guide Over Ground Transmission Line.

An experimenter can place and test a DUT for RF performance or signal integrity.

The DUT can be virtually anything, from a small capacitor used for decoupling digital power lines to check its capacitance over applied voltage, over frequency or pulses to a more complicated passive or active circuit with 50 Ohms input and output ports. Even multiple capacitors in parallel, frequently used in RF or high-speed digital designs for DC rail decoupling can be placed and characterized by using a given methodology with DC voltage applied or not applied.

I would strongly suggest you to visit Dr Istvan Novak's website

http://www.electrical-integrity.com/

which contains excellent articles and information about signal and power integrity. Also about distributed power.

Today's high speed digital circuit design needs RF design knowledge and experience. It is really an interesting part of technology and subject of expert knowledge. Students, engineers and experimenters can benefit of this small and handy PCB Panel and use it as a tool for improving their own designs or realizations.

Don't think you also need an expensive VNA together. Although it is great to have one, there are a lot of measurements one can conduct using a multimeter, a phase detector like my AD8302 Module, a directional coupler, a power detector, a power supply, an oscilloscope and a pulse/signal generator. By not owning an expensive VNA, sometimes helps on finding different smart solutions to a problem.

The PCB material is FR4 so please don't expect great performance over 3-4 GHZ, but if your work is at lower frequencies, this panel suits most of your needs perfectly. For characterizing components for power distribution for example, you will work on 100 HZ or up to 10 MHZ or 100 MHZ max or about one decade over the series resonance frequency of the DUT.

In addition you get 8 pcs male and  8 pcs female SMA connectors (not soldered). We offer a soldered set, please check our products.​

The KIT includes a  high-quality ENIG FR4 PCB PANEL  (73.5 x 63.5 mm) that comes with 8 pcs male SMA connectors and 8 pcs female SMA connectors, not soldered.


​REF https://passive-components.eu/pcb-fixtures-and-solder-wick-trick-to-improve-component-measurements/
