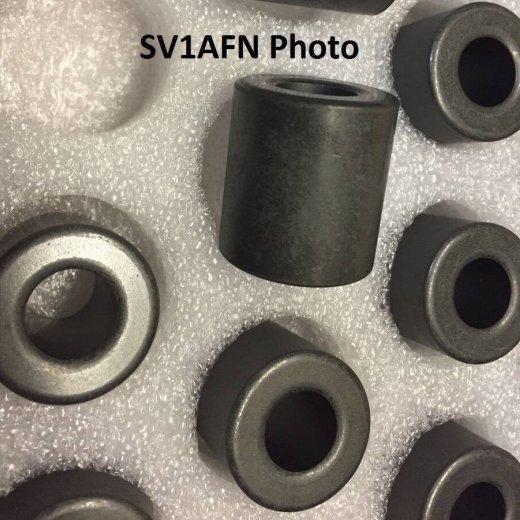

Fair Rite / Amidon FB31-1020 Ferrite Toroidal Core

Quantity
(up to)

Price per piece
(VAT excluded)

Price per piece
(VAT included)

5,64€

6,99€

5,48€

6,79€

Quantity:

Total price:(VAT excluded)

5,64€

Total price:(VAT included)

6,99€

Share it:

Secure payments by:

Description

The -31 mixture has a little better response on lower frequencies than mix-43 (FB43-1020). This one works from 500 KHZ

Physical Dimensions

OD(A) = 1.020 in / 25.90 mm +/- 0.75 mm
ID(B) = 0.505 in. / 12.80 mm +/- 0.25 mm
Ht(C) = 1.125 in. / 28.60 mm +/- 0.80 mm

A_L=5700 +/- 20 % uH=(A_L*Turns²)/1000
Actual measured AL using 10 turns #28 wire

Temperature Stability (ppm /°C) = 16000

Color Code = shiny black

Application Freq Range
RFI Suppression 1 - 300 MHz
