RF High-Power Relay (Built & Tested PCB Module)

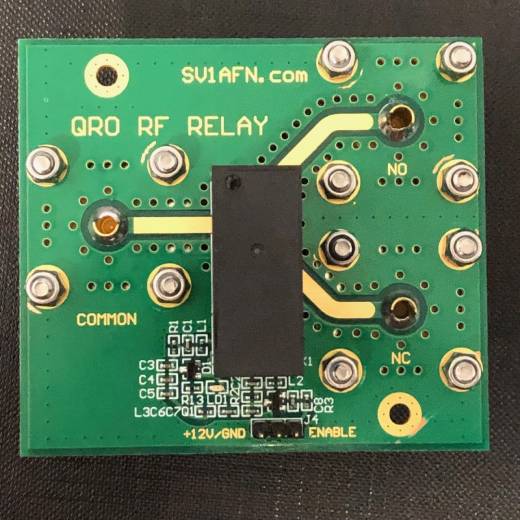

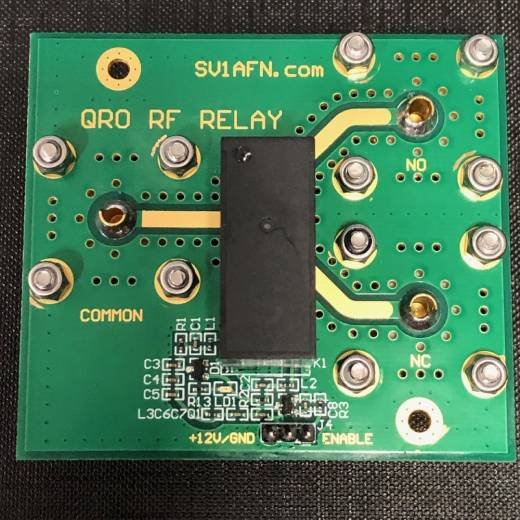

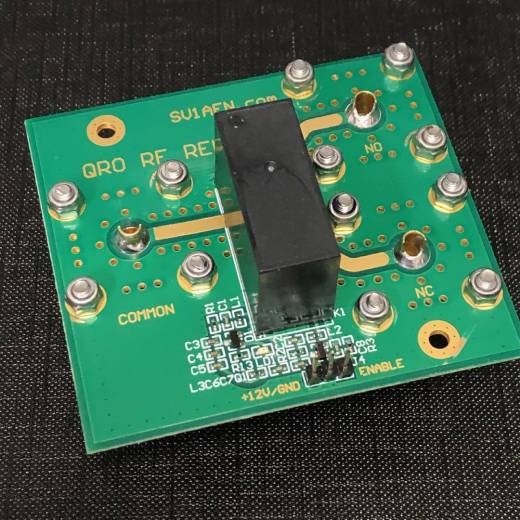

The PCB Module includes a  high-quality built & tested ENIG FR4 PCB (70.5 x 63 mm) that comes with 3 female N-type or SO-239 silver-plated connectors.

• 50 Ohm ports

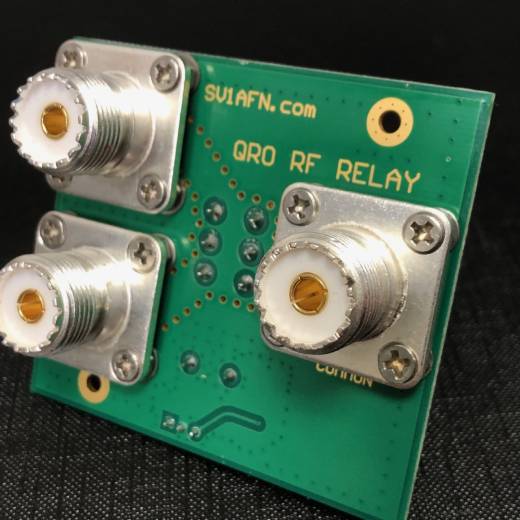

• Select N-type or SO-239 silver-plated connectors
• Select soldered or not-soldered connectors (supplied together)
• Extremely low-loss up to 100 MHZ. Usable up to 150 MHZ with lower power
• Extremely low SWR
• High isolation
• More than 1500W CW power handling

The PCB is made with 2-oz copper thickness and double gold-plating.

The PCB module is powered with 12VDC - 40 mA and contains a MOSFET relay driver

The MOSFET gate (ENABLE pin) will accept a 3.3V or 5V TTL High signal to activate the relay.

A green LED will light to indicate the relay activation.

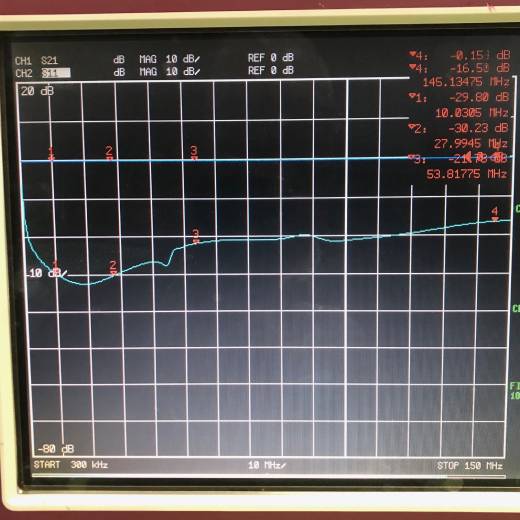

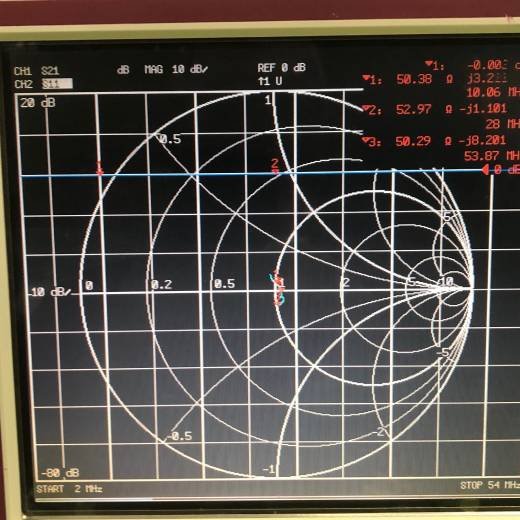

 Frequency      Insertion loss          Isolation (min)

1.8 MHZ          <0.003 dB                -60 dB

3.5 MHZ         <0.003 dB                 -54 dB

7 MHZ            <0.003 dB                 -48 dB

14 MHZ          <0.005 dB                 -42 dB

21 MHZ          <0.002 dB                 -38 dB

28 MHZ          <0.006 dB                 -35 dB

54 MHZ          <0.06 dB                   -30 dB

145 MHZ        <0.15 dB                   -23.7 dB
